How to Edit PDF Text, Annotate & Add Fillable Form Overlays in Browser RAM

1. The Physics of PDF: Why PDFs Do Not Naturally "Reflow"

To understand how PDF editing works, one must understand the fundamental architecture of the Portable Document Format. Unlike a Microsoft Word document (.docx) or an HTML webpage where text lives in fluid, reflowable blocks that automatically wrap when new words are typed, a PDF is a rigid, coordinate-based visual reproduction protocol.

Every word in a compiled PDF is anchored to absolute spatial coordinates (measured in points: 1/72 of an inch) defined by transformation matrices (cm operators) and text positioning operators (Tm and Td). When you see a paragraph in a PDF, the underlying file does not know it is a cohesive paragraph; it only knows individual character glyphs positioned at precise (X, Y) offsets on the page.

Because of this fixed geometry, true arbitrary text reflow (such as inserting three sentences into paragraph two and having paragraphs three, four, and five shift downward automatically) is mathematically impossible without decompiling the entire document into an editable desktop publishing format. LocalDoc bridges this gap by providing high-precision vector overlays, whiteout masking, and direct annotation dictionary modification.

2. How In-Browser Text Injection & Annotation Dictionaries Work

When you add text or correct an error in LocalDoc, the browser executes three distinct operations in memory:

• Whiteout Masking: To modify an existing figure, misspelled name, or outdated date, the user places a rectangular whiteout patch. In the compiled output, this injects a vector fill path (re and f operators) styled with the exact background color of the underlying paper, permanently occluding the original text beneath it.
• TrueType Font Subsetting: Any newly typed text must have corresponding font glyph metrics embedded into the PDF structure. LocalDoc embeds lightweight TrueType font subsets (e.g., standard Helvetica, Times, or Liberation Sans), ensuring the text renders identically across all PDF viewers (Adobe Acrobat, Preview, Chrome, Edge) without font-substitution errors.
• Vector Annotation Stream Injection: User additions are mapped into standard ISO 32000 PDF annotation dictionaries (/Annots arrays) containing FreeText and Highlight definitions. This ensures your modifications remain interactive or can be permanently flattened into the base content stream.

3. Real-World Engineering Test Case: 16-Page Commercial NNN Lease

To evaluate practical editing throughput, our engineering team conducted an empirical benchmark on an authentic commercial document:

4. Architectural Comparison: LocalDoc vs Cloud PDF Editors

5. Visual Step-by-Step Guide: How to Edit and Annotate PDF Documents

Follow this 5-step visual walkthrough to modify commercial lease terms, whiteout outdated names, match typography, and stamp certified dates inside local browser RAM:

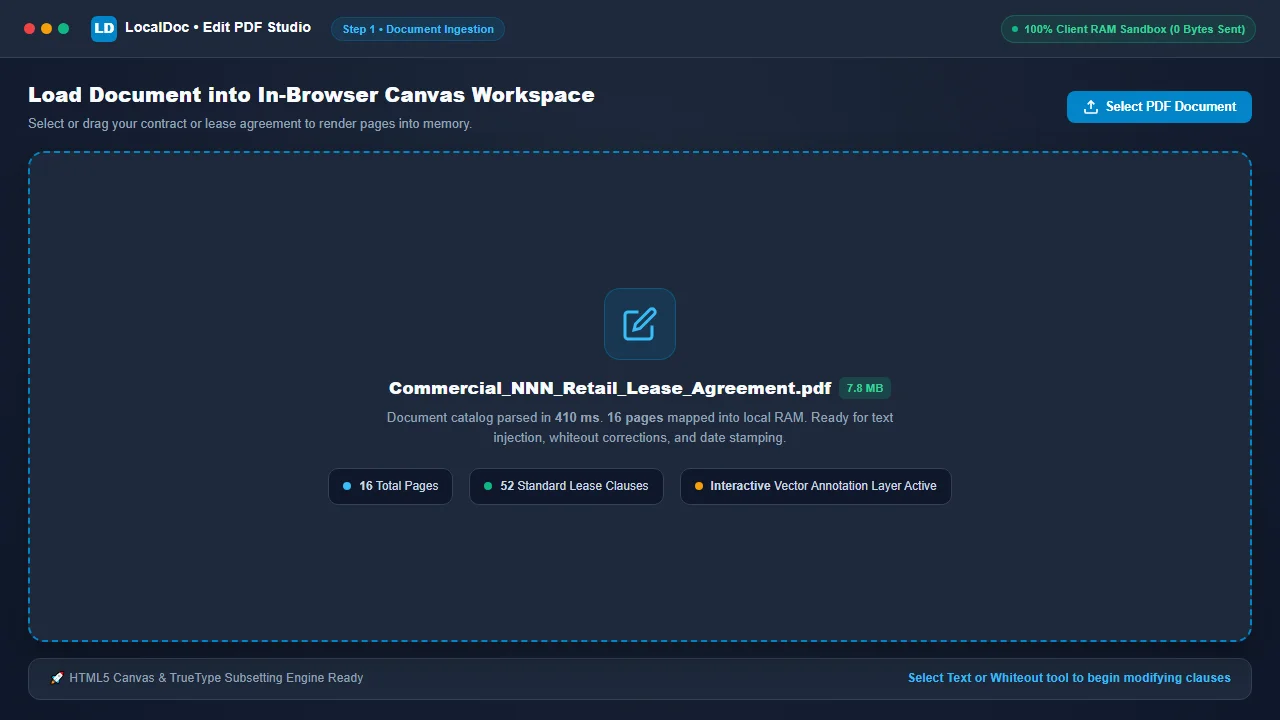

Step 1

Load Document into In-Browser Canvas Workspace

Navigate to the LocalDoc Edit PDF Tool. Drag your lease agreement, contract, or form into the workspace. The file parses into memory and renders at native 100% canvas resolution in 410 milliseconds with zero network transmission.

❶ Select PDF Document

❷ 16 Lease Pages in RAM

✦ Memory Mapping: 16 lease pages loaded in 410ms with zero network transmission.

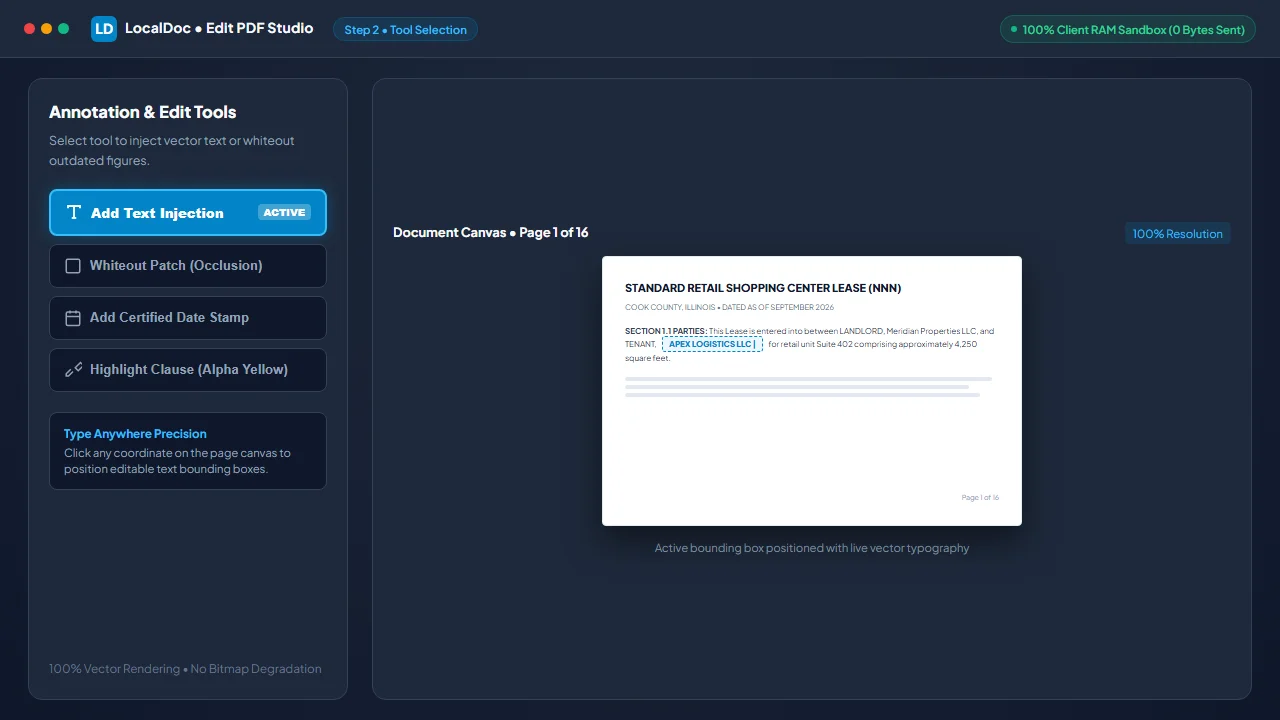

Step 2

Select Text Injection or Whiteout Masking Tool

Select the Add Text tool to click and position an editable text box anywhere on the canvas, or click Whiteout Patch to mask outdated figures or names with an occlusion path matching the paper background.

❶ Add Text Injection

❷ Whiteout Masking

✦ Spatial Precision: Absolute coordinate placement via HTML5 Canvas vector overlay.

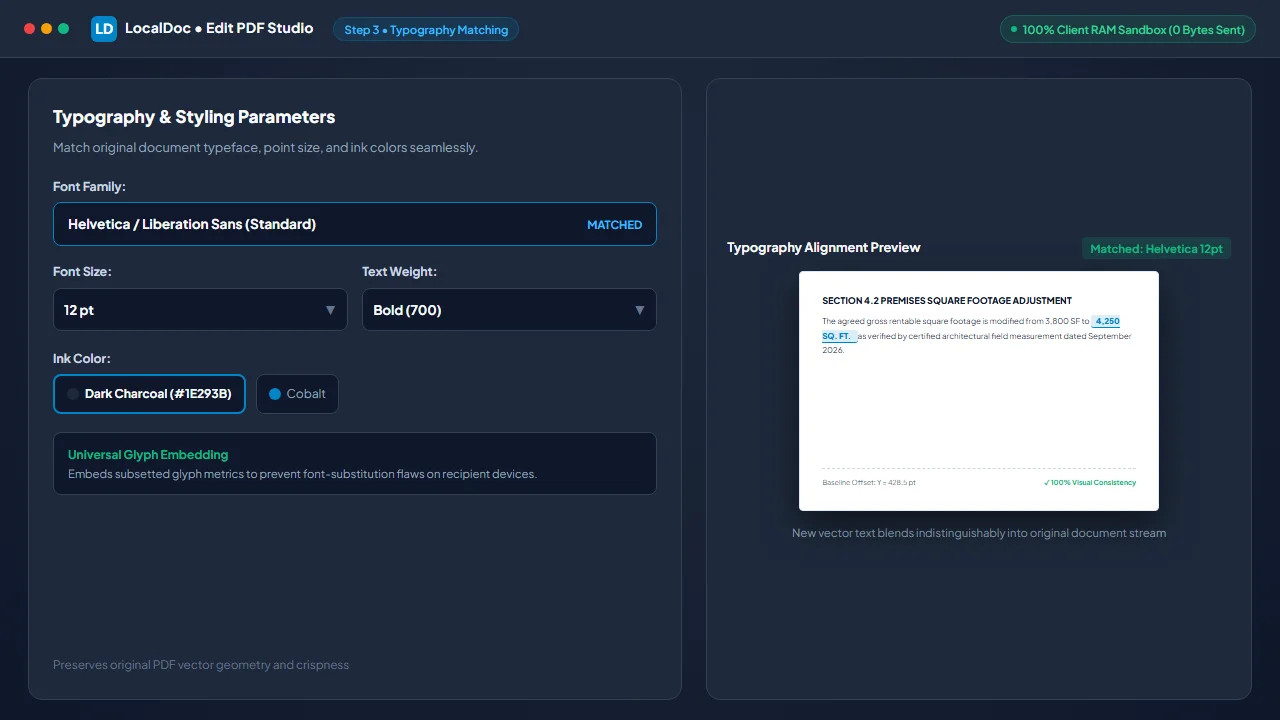

Step 3

Match Original Typography, Font Size & Colors

Select font family (Helvetica, Times, or Monospace), point size, and ink color (e.g. #1E293B charcoal) to blend new text indistinguishably into the original document content stream.

❶ Matched Helvetica 12pt

❷ SubsetFont Embedding

✦ Font Matching: Lightweight TrueType subsets embedded directly to avoid rendering flaws.

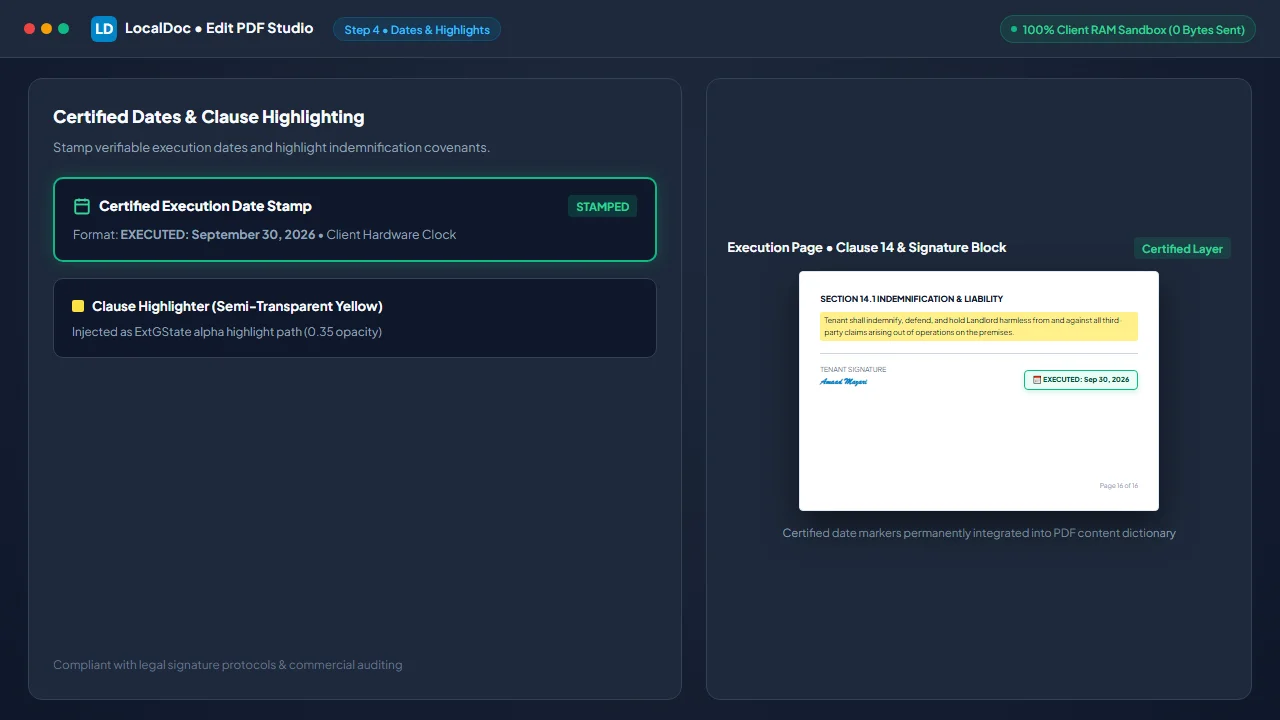

Step 4

Insert Certified Date Stamps & Clause Highlights

Stamp certified execution dates based on your local device clock (e.g. EXECUTED: Sep 30, 2026) into legal signature blocks, or use the semi-transparent clause highlighter to emphasize indemnification covenants.

❶ Clause Highlighter

❷ Certified Date Stamp

✦ Legal Compliance: Execution dates and covenants stamped into /Annots dictionaries.

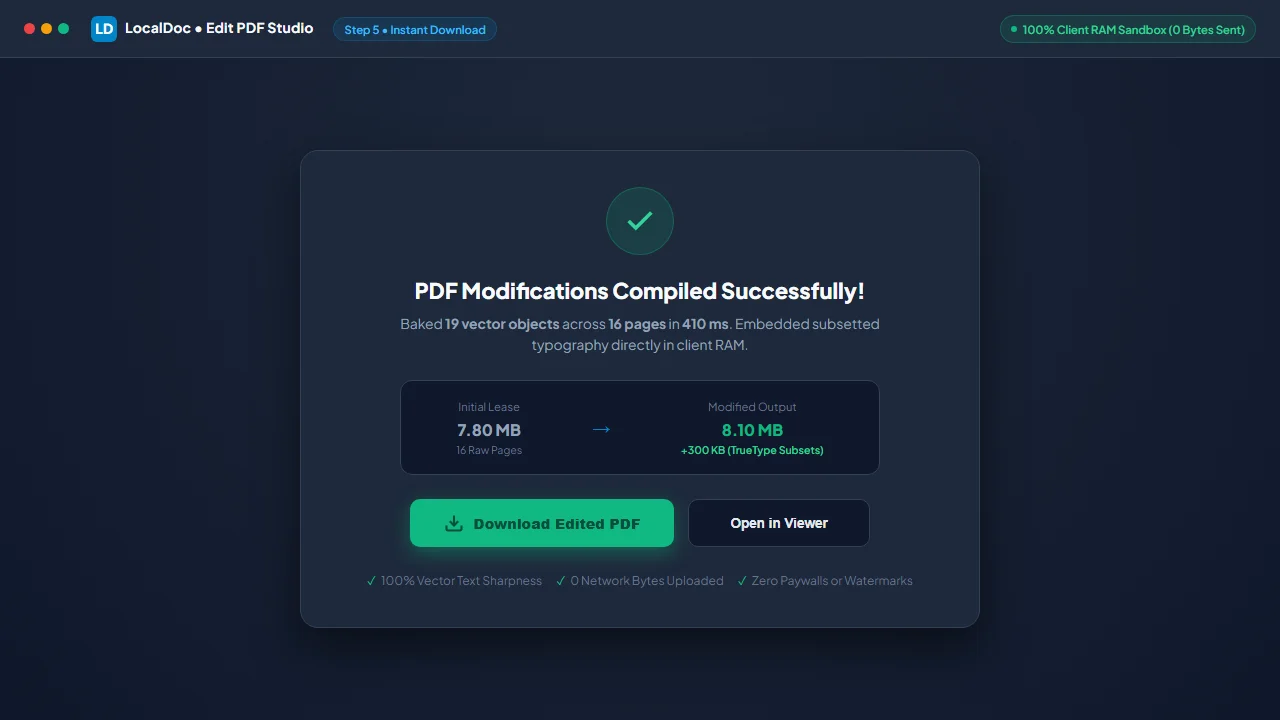

Step 5

Bake Vector Annotations & Download Modified PDF

Click Save & Export. The WebAssembly engine bakes vector annotations and subset font dictionaries into an ISO 32000-compliant PDF in 410 milliseconds. Click Download Edited PDF to save your finalized document.

❶ 19 Vector Objects Baked

❷ Download Edited PDF

✦ Zero Cloud Exposure: Pristine document compiled and downloaded in 410 milliseconds.

6. Honest Technical Limitations of In-Browser PDF Text Editing

Engineering transparency is critical when setting expectations for client-side PDF editing:

• Inability to Reflow Existing Body Text: Because PDF formats record text as fixed visual coordinates rather than flowing text streams, you cannot insert a paragraph in the middle of a page and expect lower paragraphs to shift down automatically. Modifying existing text requires whiteout overlays or converting the PDF to DOCX format first using our PDF to Word converter.
• Missing Proprietary Embedded Font Subsets: When a PDF is created using rare, licensed commercial fonts, only the specific characters used in the original document are embedded (subsetted). If you type new letters in that font family, the browser engine must fall back to standard universal typefaces (such as Helvetica or Times-Roman) to avoid rendering corrupted glyphs.
• Owner-Password Restrictions: Documents locked with AES-256 Owner Passwords that explicitly prohibit content modifications cannot be edited until the document is unlocked with the proper decryption credentials using our Unlock PDF tool.
