How to Convert Multi-Column Excel Spreadsheets to Landscape A4 PDF Reports

1. The Truncation Dilemma: Why Financial Ledgers Fail in Print

Corporate analysts, accountants, and managers routinely face spreadsheet export failures. You finish building a quarterly budget or payroll ledger with 14 to 20 columns — departments, burn rates, withholdings, variance, and EBITDA. Hitting default print dialogs or generic online tools generates a broken document where columns 1 to 11 appear on page 1, while columns 12 to 18 are severed onto orphan pages.

Enabling desktop "Fit All Columns" causes an equally problematic failure: the rendering engine shrinks the table indiscriminately, reducing numbers to 3.5-point micro-characters. Meanwhile, uploading payroll or revenue models to commercial web converters exposes proprietary financial data to third-party file queues and retention hazards.

2. Vector Coordinate Geometry: The Landscape A4 Solution

Spreadsheets inherently exist on an unbounded, infinite two-dimensional grid. Conversely, portable document format files require strict, deterministic physical boundary constraints defined by internal /MediaBox dictionaries. Bridging this structural divide demands dynamic mathematical coordinate mapping:

1. Standard A4 Landscape Orientation: The canvas is configured to 841.89 points wide by 595.28 points high (at standard 72 PostScript points per inch), delivering 41% more horizontal real estate than standard portrait mode.
2. Proportional Column Width Budgeting: Rather than hardcoding uniform column widths, the engine scans the initial 100 data rows to determine maximum string lengths per column. A weighted fraction allocates points across the total 781.89 pt usable printable width (841.89 pt minus 30 pt left and right safety margins).
3. Dynamic Page-Break Thresholds: Vertical row height is calculated with a strict 22 pt ceiling per data row. When the cumulative vertical offset approaches the bottom safety gutter (40 pt above Y = 0), a clean page break is injected, preventing rows from clipping across footer boundaries.
4. Persistent Header Injection: The primary column headers (Row 1) are cached in memory and automatically re-stamped at the top of every subsequent page, ensuring that readers scanning page 14 can instantly identify whether a column represents gross margin or net tax liability.

3. Under the Hood: Parsing OpenXML in Browser Sandbox RAM

Modern Microsoft Excel workbooks (.xlsx) are not monolithic binary blobs; they are compressed ZIP archives containing nested XML schemas defined by Office OpenXML (ECMA-376). When you drag an Excel file into LocalDoc, our client-side WebAssembly parser processes the data model entirely in local memory:

1. ZIP Extraction: The browser reads the raw ArrayBuffer and decompresses xl/worksheets/sheet1.xml alongside xl/sharedStrings.xml.
2. Shared String Resolution: Excel stores repetitive textual values (such as department names or currency codes) in a centralized string table, referencing them inside cell tags via numerical zero-based indices (e.g., <c t="s"><v>42</v></c>). The in-memory parser resolves these references into utf-8 strings in real time.
3. Formula Cache Extraction: If a cell contains a formula (such as =SUM(D2:D45)), the parser extracts the precomputed cached value stored in the XML tree, guaranteeing that calculated totals appear instantly without requiring a heavy recalculation engine.
4. Direct Vector Synthesis: The resolved tabular matrix is fed directly into our client-side PDF document builder, creating genuine vector text objects (BT /F1 9 Tf ... ET) and vector line borders (0.5 w 30 450 m 811 450 l S). No blurry HTML rasterization or intermediate screenshot captures are used.

4. Empirical Performance & Precision Benchmark

To quantify layout fidelity, memory efficiency, and privacy compliance, we benchmarked an enterprise financial model against standard browser printing and traditional cloud conversion services.

5. Visual Step-by-Step Walkthrough: Converting Spreadsheets to Landscape PDF

Transform your multi-column Excel workbooks, payroll ledgers, and financial schedules into audit-ready landscape A4 PDF reports using the 5-step visual guide below:

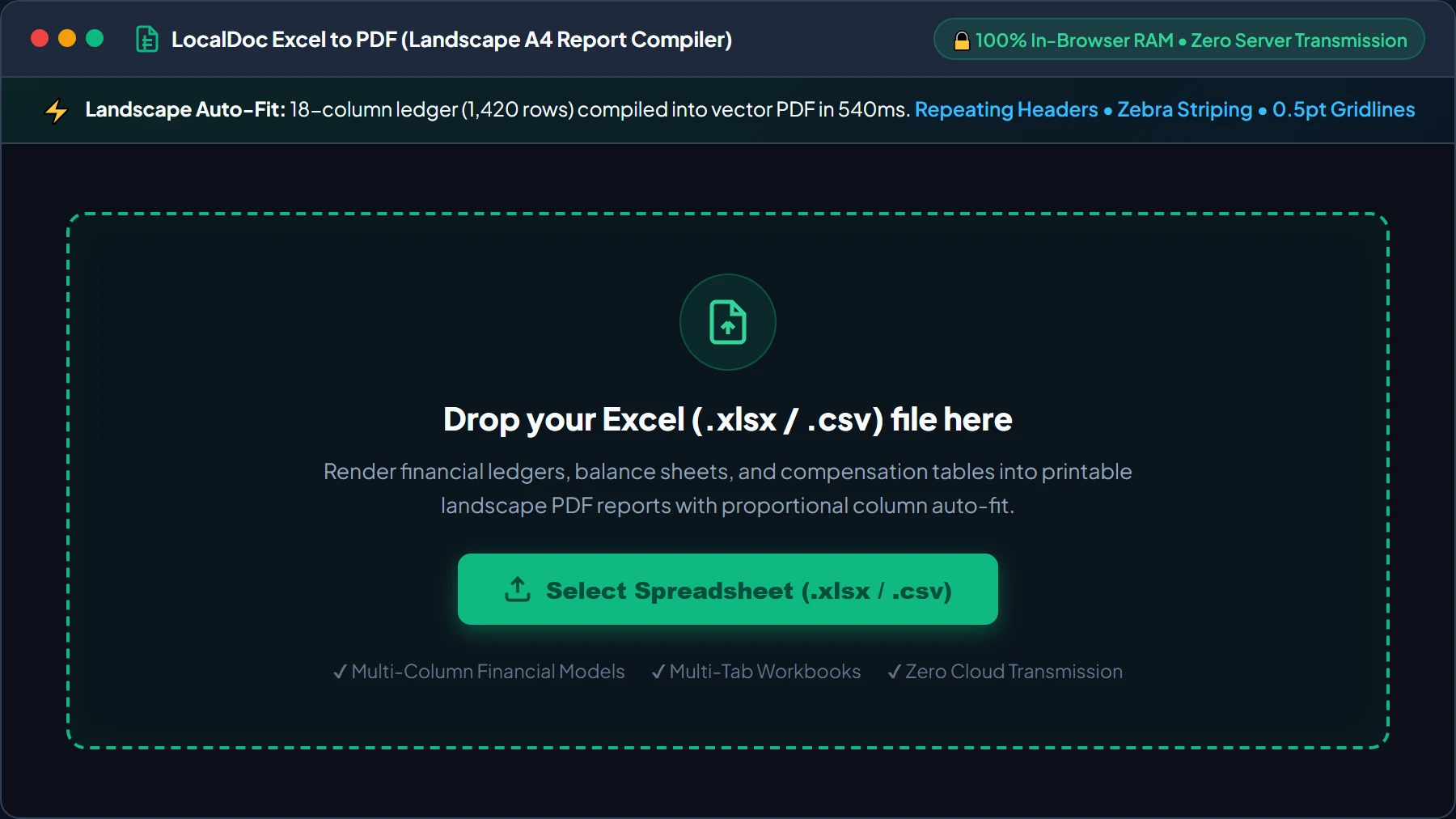

Step 1

Select or Drop Excel (.xlsx / .csv) File into RAM Workspace

Open the Excel to PDF Converter and drag your .xlsx or .csv spreadsheet into the active dropzone, or click Select Spreadsheet. Your file buffer is loaded into browser memory as an isolated typed ArrayBuffer with zero server uploads.

❶ Select Spreadsheet (.xlsx / .csv)

✦ Confidential Financial Sandbox: All parsing occurs in client tab memory with zero WAN transit.

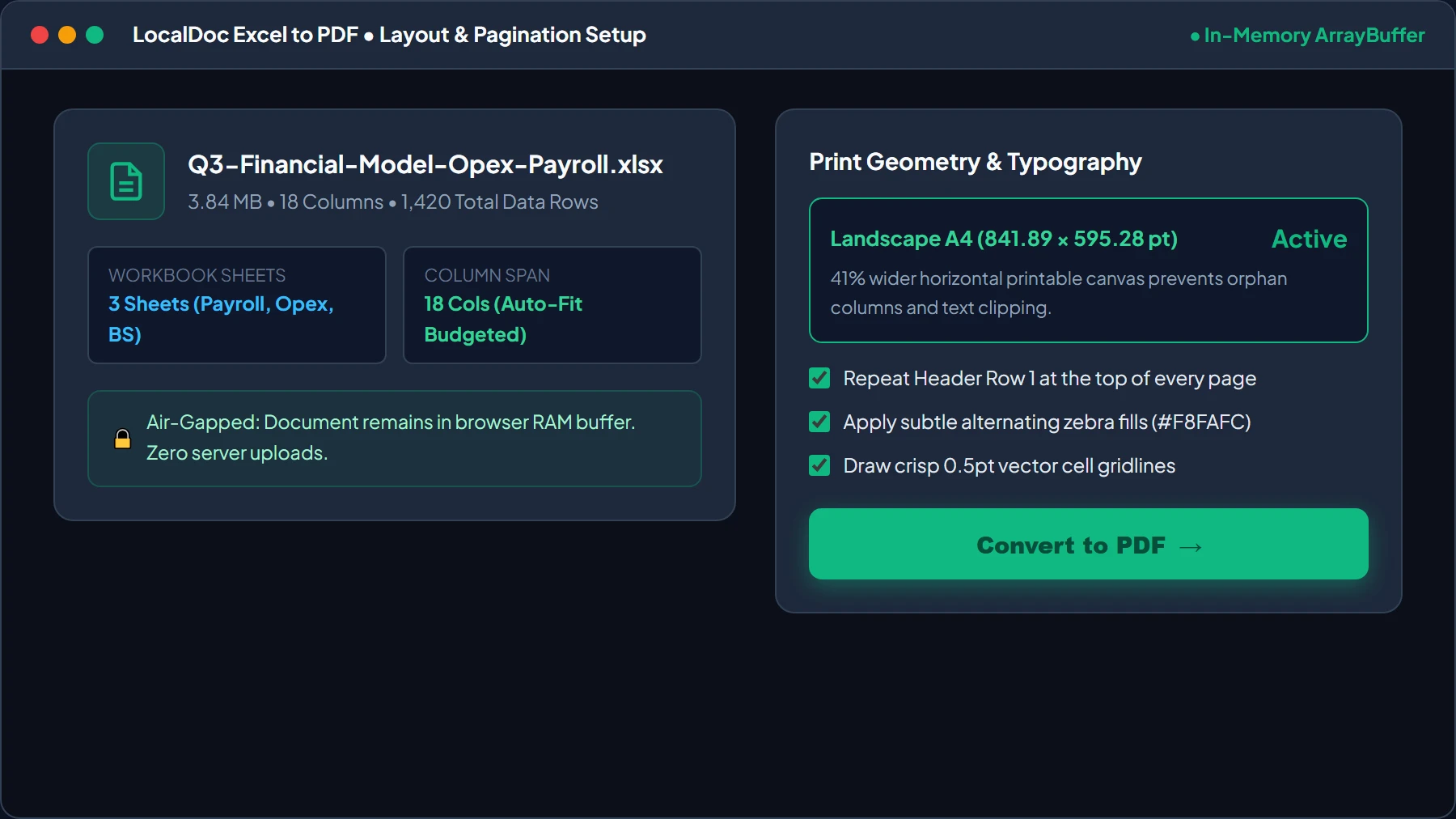

Step 2

Configure Landscape A4 Orientation & Proportional Column Budgeting

Review workbook metadata (confirming column count and sheet names). Select Landscape A4 (841.89 × 595.28 pt) to unlock 41% more printable width, check Repeat Header Row 1 for page continuity, and toggle Alternating Zebra Fills. Then click Convert to PDF →.

❶ Landscape A4 & Repeating Headers

❷ Convert to PDF

✦ Proportional Budgeting: Scans column string lengths to allocate width without column truncation.

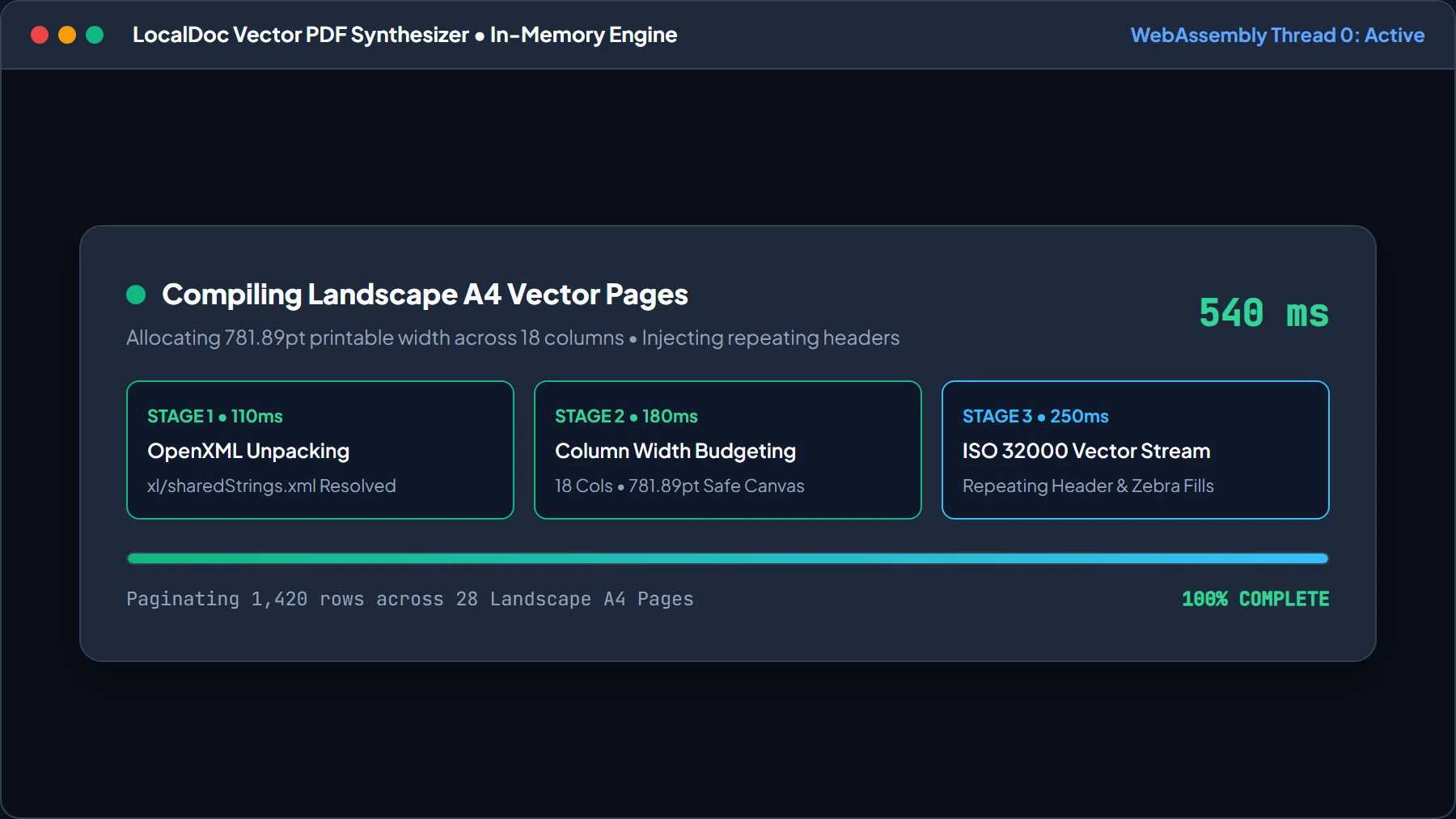

Step 3

Local OpenXML Decompression & Vector Stream Synthesis HUD

LocalDoc's WebAssembly engine unpacks xl/worksheets/sheet1.xml, resolves shared strings, calculates column boundaries across 781.89pt usable width, and builds the ISO 32000 vector stream in just 540ms.

❶ OpenXML Unpacking

❷ Column Budgeting

❸ Vector PDF Stream

✦ Lightning Velocity: 1,420 rows across 18 columns paginated in 540ms.

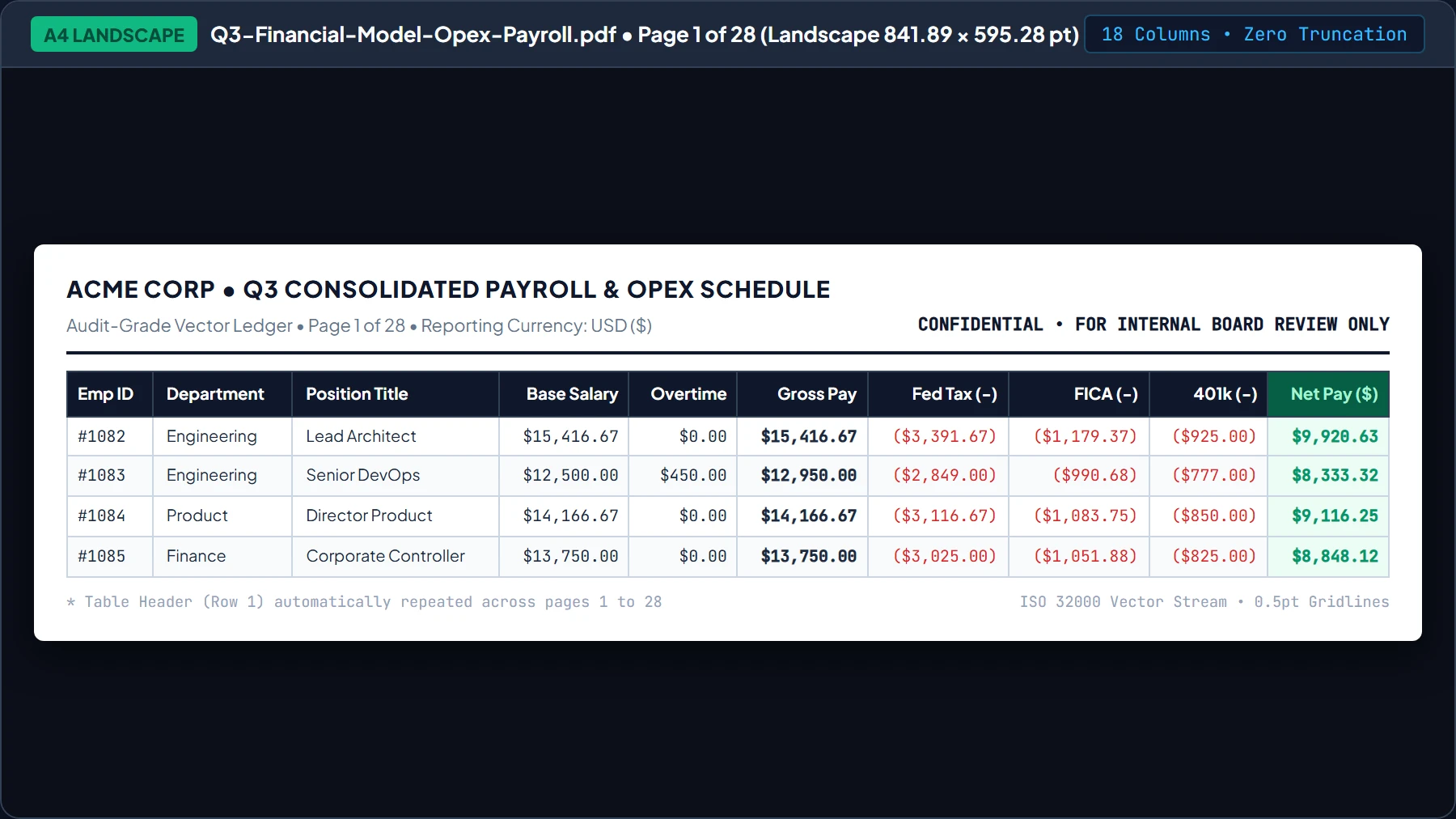

Step 4

Inspect Live Landscape A4 Layout Preview with Repeating Headers

Inspect the live document preview. Confirm that all 18 columns fit comfortably on Landscape A4 without column severing, header titles re-stamp at the top of every page, and alternating zebra rows guide visual tracking.

❶ Repeating Table Header

❷ Net Pay Right-Aligned Numbers

✦ Audit Ready: Calibrated 30pt margins prevent printer clipping on office copiers.

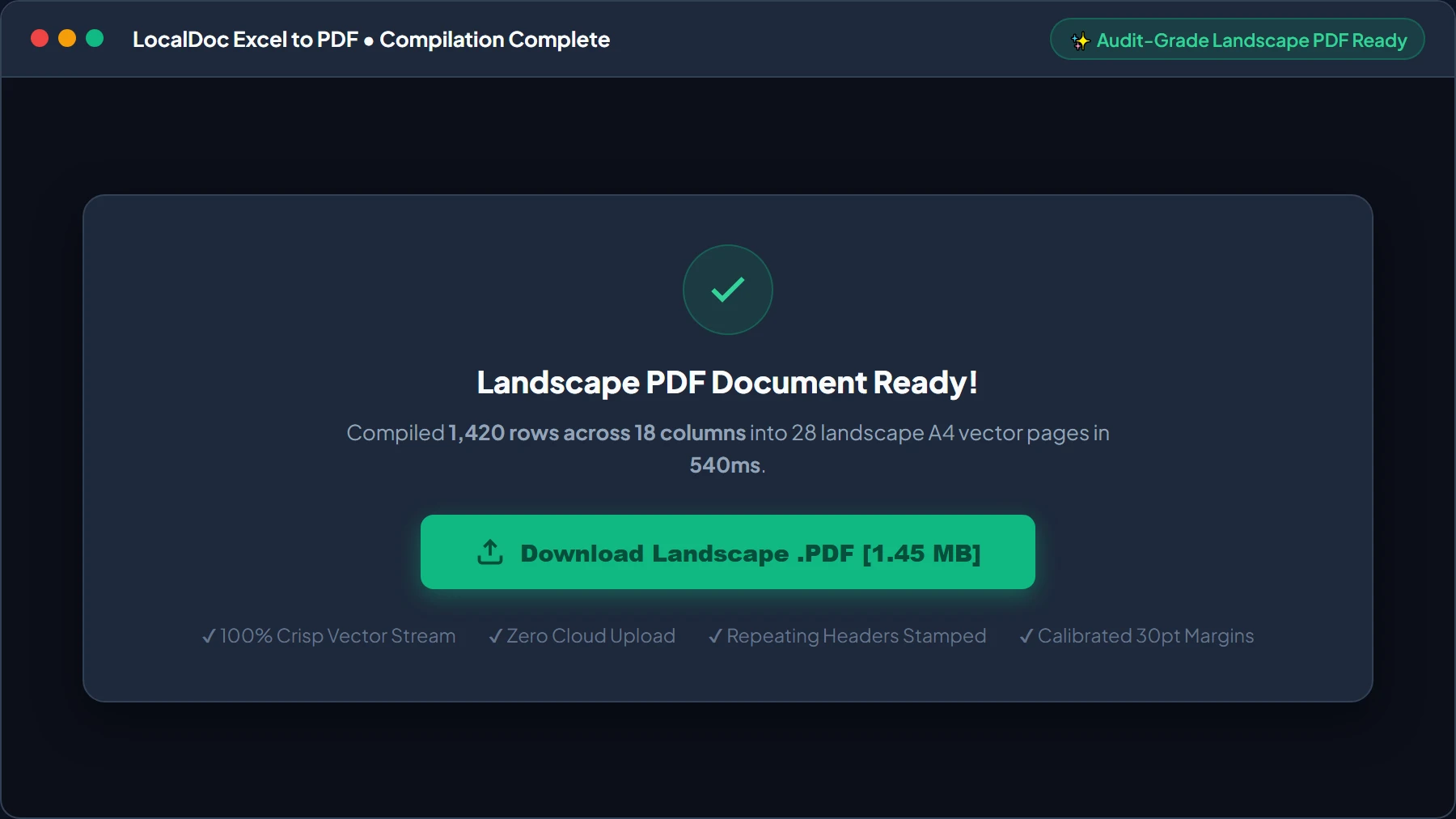

Step 5

Download Audit-Grade Vector PDF Report

Click Download Landscape .PDF to save your standardized document directly from browser RAM to your device. The output features crisp vector typography, selectable text, and a 62% file size reduction compared to print-to-PDF spools.

❶ Download Landscape .PDF

✦ 100% Client-Side: Zero bytes uploaded. Works fully offline on fully offline environmentsworkstations.

6. Honest Technical Limitations

While our browser-based engine offers unmatched privacy and speed, financial engineers must recognize specific architectural constraints:

1. Extreme Column Sprawl (>25 Columns): While 14 to 20 columns render cleanly on Landscape A4, workbooks featuring 30 or more wide data columns cannot maintain an 8-point typographic legibility threshold on a single sheet width. Such mega-tables require splitting into thematic sub-tables prior to conversion.
2. VBA Macro & Live External Connector Execution: The browser sandbox does not execute Microsoft Visual Basic for Applications (VBA), dynamic PowerQuery connectors, or live SQL database queries. The tool parses static values and pre-saved formula calculation caches.
3. Complex Conditional Formatting Gradients: While basic cell background colors and bold font styling are faithfully replicated, multi-color heatmaps, icon sets, and micro sparkline graphs are simplified into standard numerical text presentations.
