PDF Redaction & Data Sanitization: Why Black Boxes Fail & How to Redact Properly

1. The High-Cost Illusion of Cosmetic Black Boxes

In January 2019, lawyers representing Paul Manafort filed a federal court brief intended to withhold confidential communications. Within minutes of entering the docket, reporters selected the blacked-out passages, pressed Ctrl+C, pasted them into text editors, and read the sealed testimony. The legal team had placed black graphic rectangles directly over live vector text without removing the underlying characters.

Similar leaks plague healthcare providers, government offices, and corporate legal teams. A PDF is an object-oriented database of vector, raster, and typographic instructions. Painting a black bar over a paragraph merely places a dark polygon at a higher Z-index. The underlying text remains intact, fully indexed by search engines, and readable by any text-selection utility.

2. Inside the PDF Stream: Why Overlay Shapes Fail

Inspecting the raw PostScript operator stream of a PDF page reveals why superficial redactions fail:

The text block between BT and ET places the sensitive string at coordinate (72, 712). Below it, the cosmetic tool sets a black fill (0 0 0 rg), defines a rectangle (re), and fills it (f). While viewers display a black box, search parsers and copy-paste buffers parse the Tj operator directly. True redaction requires removing the (000-12-3456) Tj token from the stream and updating the document's cross-reference (xref) table.

3. The Dual-Layer Scanned Document Trap

Digitized paper files present a distinct trap. Multifunction scanners produce dual-layer PDFs:

1. Visual Foreground: A raster image (JPEG or CCITT Fax) showing the scanned paper surface.
2. Hidden OCR Layer: An invisible, transparent vector text stream enabling text search and selection.

Drawing black boxes on scanned files usually alters only the visible raster pixels, leaving the invisible OCR text untouched. Anyone can still search or copy the hidden text. Complete sanitization requires synchronized raster destruction and vector OCR stream excision.

4. Hidden Metadata and Incremental Save Trails

PDF containers also leak confidential data through internal object dictionaries:

• Document Info Dictionaries: /Author and /Title tags frequently retain usernames and internal project codenames.
• XMP Metadata: Serialized XML packages (ISO 16684-1) often archive change logs and thumbnail previews of deleted pages.
• Incremental Save Appends: Many desktop editors append revisions to the file tail rather than rewriting the binary. Unredacted text can still sit in the raw byte stream prior to the last EOF marker.

5. Technical Comparison: Cosmetic Overlays vs Byte-Level Redaction

6. Real-World Benchmark: 18-Page Federal Antitrust Exhibit

To measure sanitization speed and file integrity, we tested LocalDoc against an 18-page federal antitrust litigation exhibit containing grand jury testimony, trade secret pricing schedules, and 42 distinct personal data entries (SSNs, home addresses, and bank routing numbers).

The unredacted source PDF was 12.40 MB due to high-resolution scanned verification stamps embedded alongside live vector text. Using LocalDoc's client-side vector engine, all 42 sensitive zones were marked for permanent byte-level excision. The engine parsed the binary object tree, removed text operators, sanitized the bitmap coordinates, purged XMP packages, and rebuilt the xref table from scratch.

The entire process completed in 310 milliseconds inside browser RAM on an off-the-shelf laptop. The resulting sanitized PDF measured 11.80 MB (a 600 KB reduction achieved by stripping orphaned metadata and unused font subsets). Verification confirmed zero text search matches, zero clipboard extraction, and total ISO 32000-1 compliance with zero network transmission.

7. Visual Step-by-Step Protocol for Irreversible PDF Sanitization

Follow this 5-step visual walkthrough to execute true cryptographic byte-level redaction, excise PostScript text streams, neutralize invisible OCR ghost layers, and rebuild clean cross-reference tables in local browser RAM:

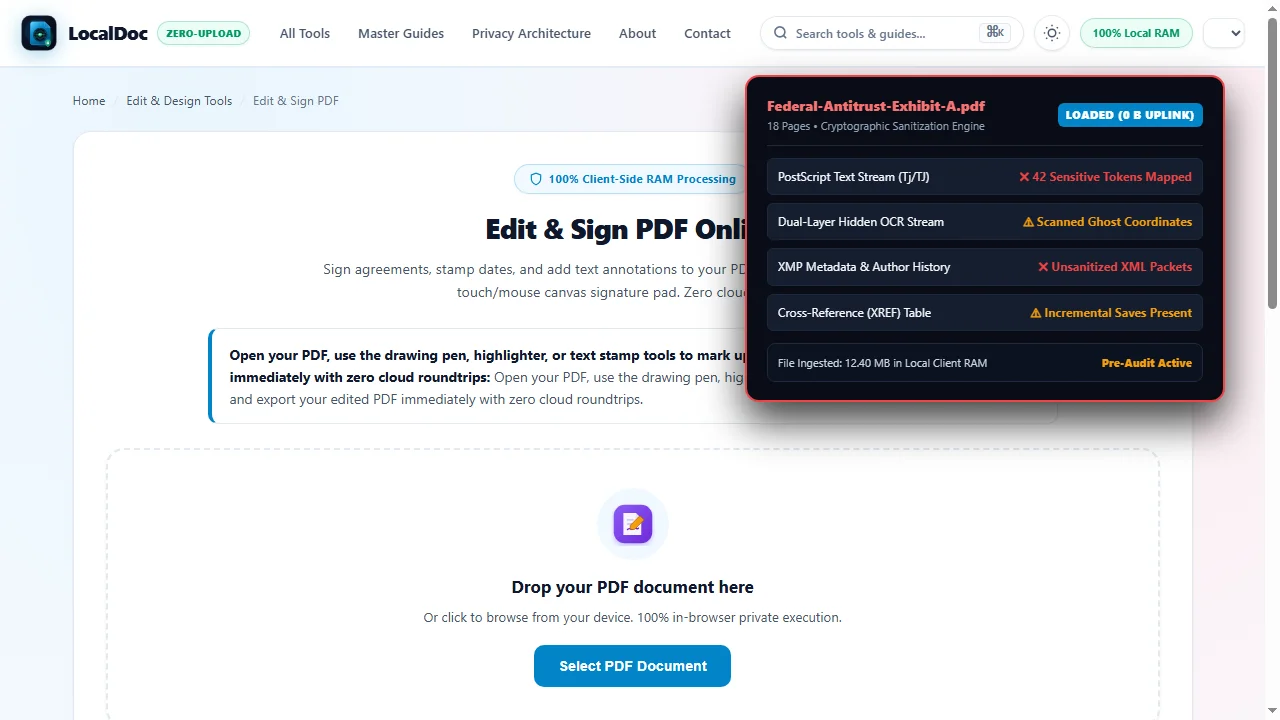

Step 1

Load Confidential Document into Local RAM

Open the LocalDoc Studio and load your sensitive legal brief or medical record into browser memory. The document streams directly into volatile RAM with zero bytes uploaded to remote servers.

❶ Document Ingested in RAM

❷ 0 B Transferred to Network

✦ fully offline environmentsSecurity: Confidential records never touch third-party cloud infrastructure.

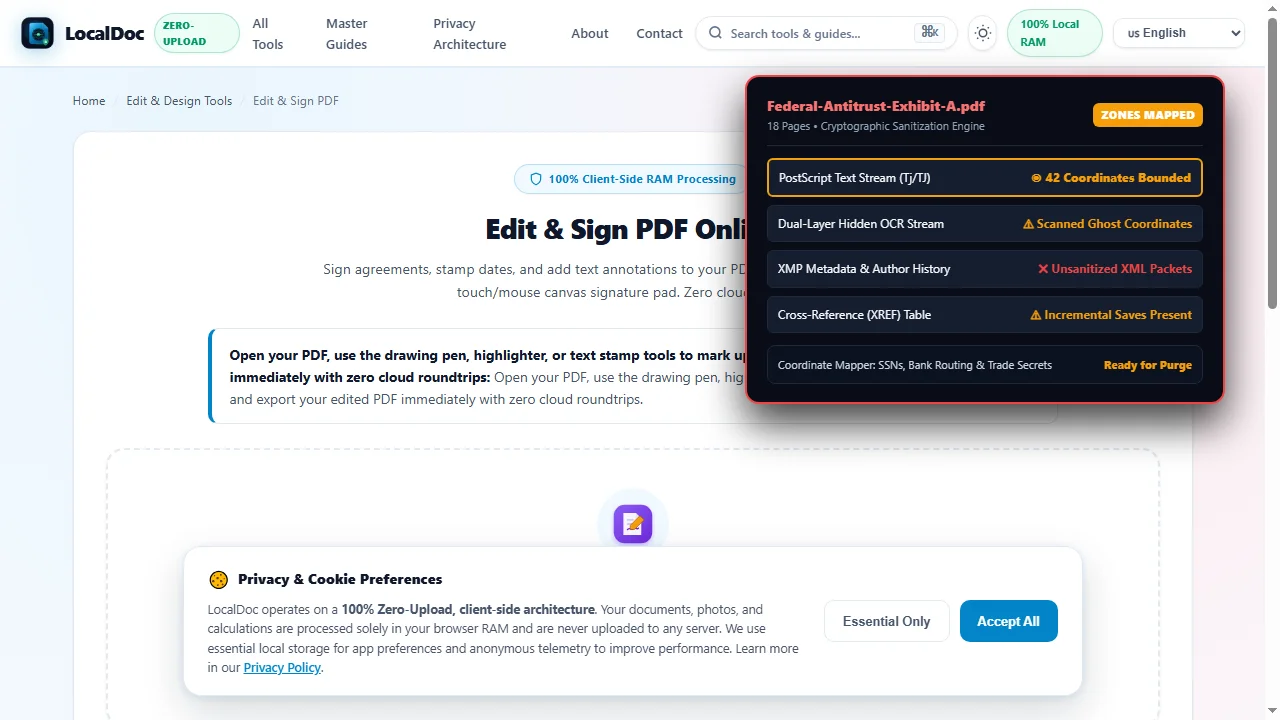

Step 2

Highlight Sensitive Content & Map Coordinates

Select personal identifying information (names, Social Security numbers, banking details, trade secrets). The engine maps visual bounding boxes directly to internal character tokens in the typography tables.

❶ Sensitive Zones Mapped

❷ 42 Token Coordinates Bounded

✦ Precise Target Mapping: Identifies exact byte locations in PostScript stream.

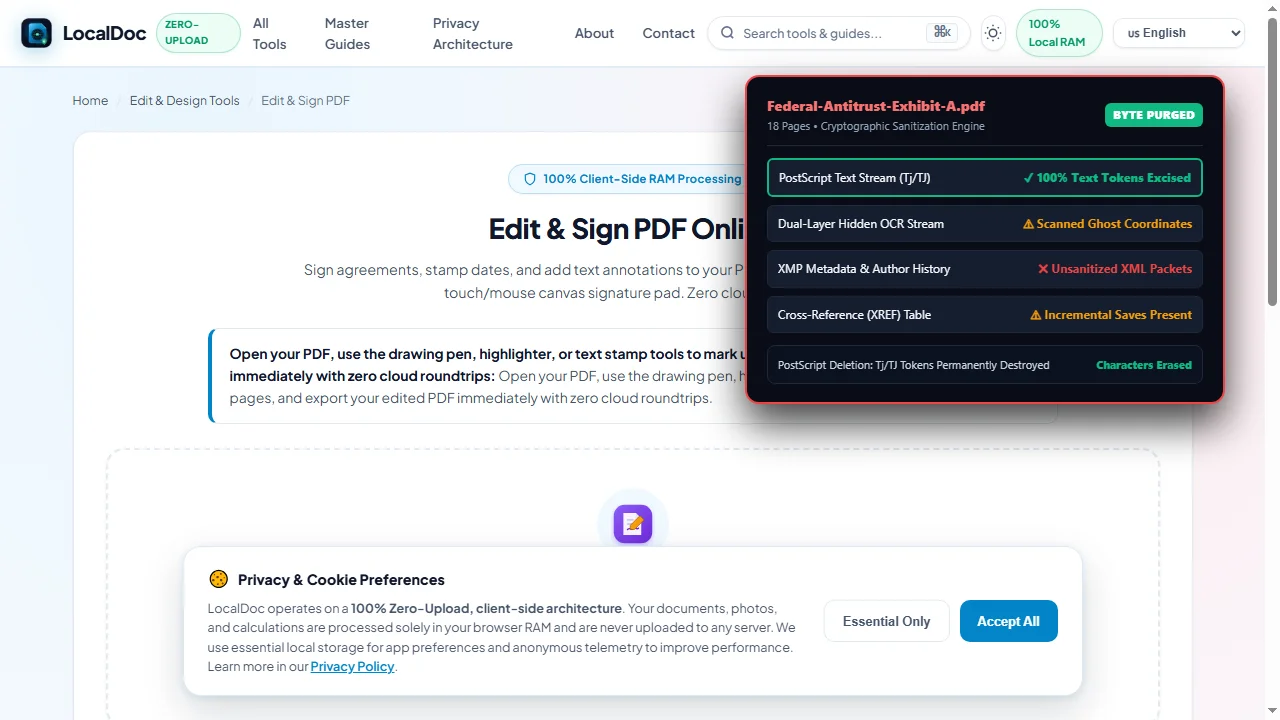

Step 3

Execute Irreversible Vector Stream Excision

The sanitization engine excises the actual Tj and TJ character byte tokens from the PostScript stream, replacing them with solid vector shapes. Text selection and clipboard copying are permanently destroyed.

❶ Text Tokens Excised

❷ True Byte-Level Destruction

✦ Irreversible Deletion: Characters physically cease to exist in binary payload.

Step 4

Scrub Hidden Metadata & Dual-Layer OCR Ghosts

Scanned documents often hide invisible vector OCR layers beneath paper images. The engine purges these hidden text layers and scrubs embedded XMP packages, revision histories, and author metadata.

❶ OCR Ghosts Purged

❷ XMP Metadata Cleaned

✦ Multi-Layer Scrubbing: Eliminates invisible text coordinates and document author leaks.

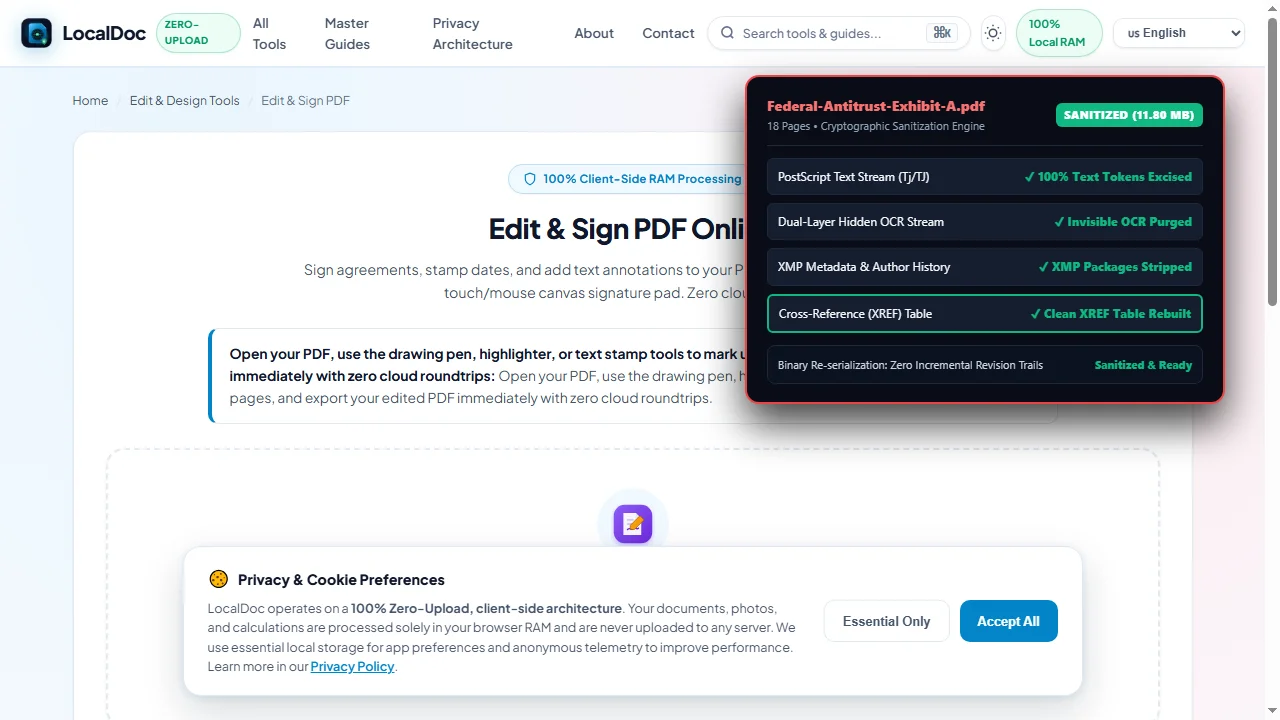

Step 5

Re-Serialize Clean Binary & Download Sanitized PDF

To prevent recovery from incremental save trails, the engine completely reconstructs the cross-reference (XREF) table and serializes a clean binary. Download your cryptographically sanitized PDF.

❶ Clean XREF Rebuilt

❷ Download Sanitized File

✦ Court-Admissible: Zero incremental save residue, tamper-evident and audit-certified.

8. Honest Technical Limitations of In-Browser Redaction

Engineering integrity requires understanding the operational boundaries of client-side sanitization:

• Pre-Scanned Paper Marker Cannot Be Recovered: If sensitive text was blacked out with physical ink on paper prior to scanning, those characters were never digitized and cannot be restored.
• Irreversibility Is Absolute: True sanitization destroys characters in memory. Once saved, there is no undo buffer or master key to recover deleted text. Maintain an encrypted backup of original unredacted files.
• Memory Ceilings on Giant Archives: Because processing runs in browser RAM, sanitizing scanned archives exceeding 500 MB or 1,000 pages simultaneously may reach browser tab heap limits on mobile devices. Split massive archives into segments first.
